TIR

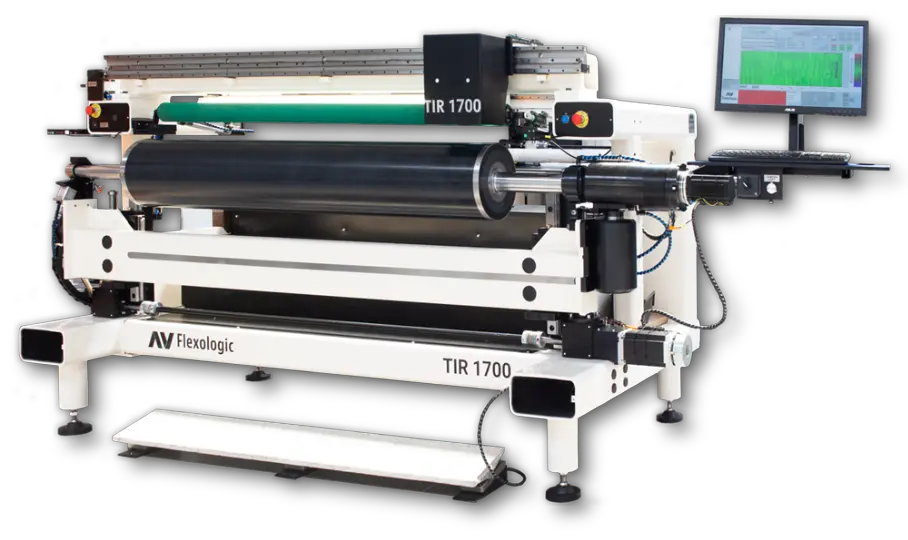

Sleeve Measurement System
The TIR Sleeve Measurement System analyses the quality of the printing sleeve or cylinder by measuring the 3D landscape of the surface with an accuracy of 5 microns. The TIR system keeps track of the exact condition of each printing sleeve in stock, so that they can be placed in the press with the right settings. Worn out or damaged sleeves are easily detected, which prevents press downtime due to bad quality sleeves.
- Prevent press downtime by avoiding using worn-out sleeves in the flexographic printing press
- Highest sleeve measurements with a quick scan
- Easily identify damaged sleeve
- Stores the measurement report
- Rigid steel construction for long durability
Discover TIR
Ensure Sleeve Quality and Prevent Press Downtime
The TIR Sleeve Measurement System analyzes the quality of printing sleeves by measuring their 3D surface landscape. It detects worn-out or damaged sleeves, which helps prevent press downtime.
Detailed Sleeve Analysis and Quality Reports
The system uses a high-precision laser and HD cameras to create detailed quality reports. This data allows you to track sleeve condition over time and make informed decisions about sleeve usage and replacement.
Features

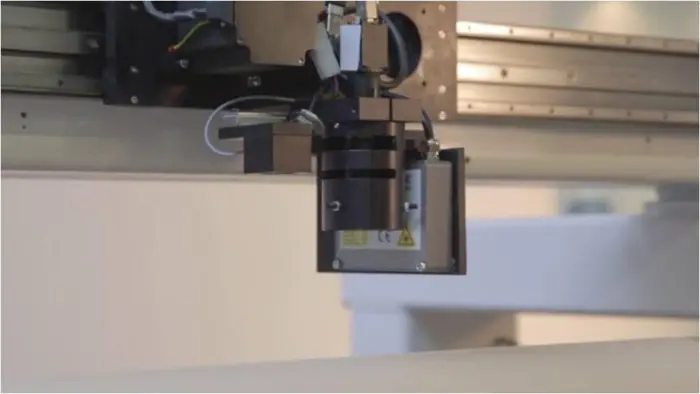

Automatic Moving HD Cameras
Ultra high definition cameras moving according to the stored data in the system
Vertically Moving Cylinder
It allows a fixed distance of the cameras to the plate, so no focusing of the lenses is needed.

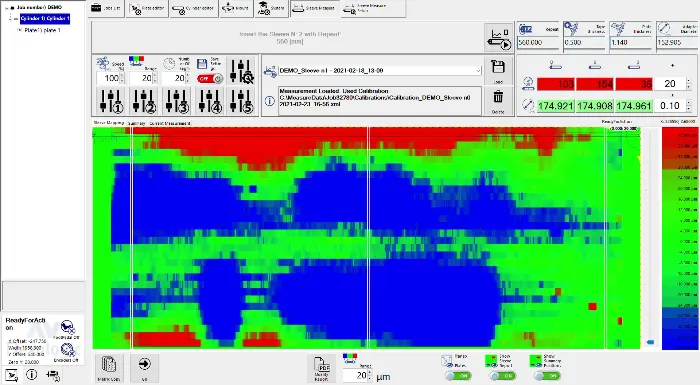

Advanced Software
Latest AV MOM software for analyzing and storing information about the condition of the sleeve.

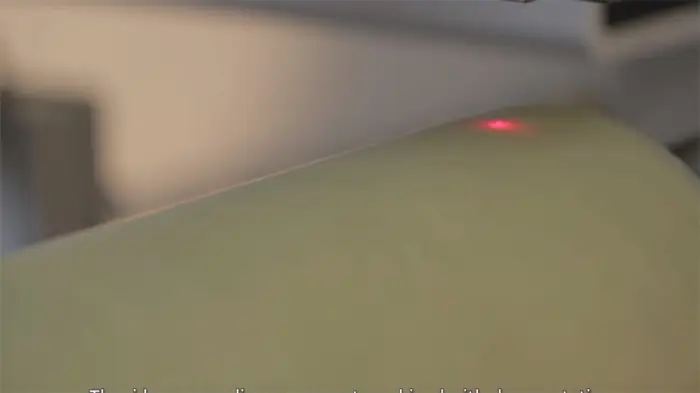

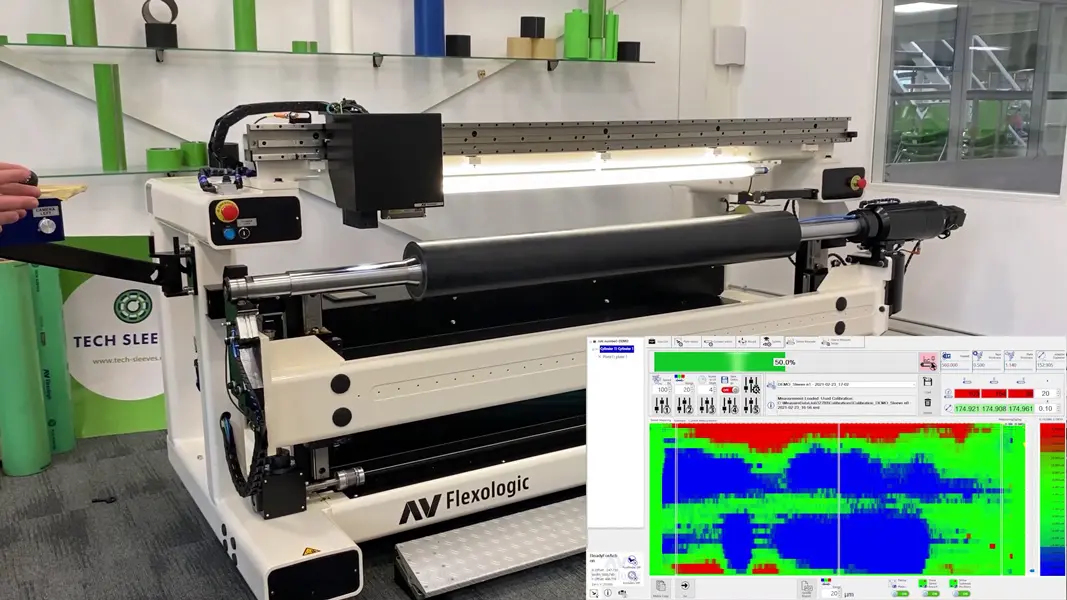

Laser Scan
The laser scans and analyzes the 3D landscape of the sleeve or the mandrel. Then a report is created

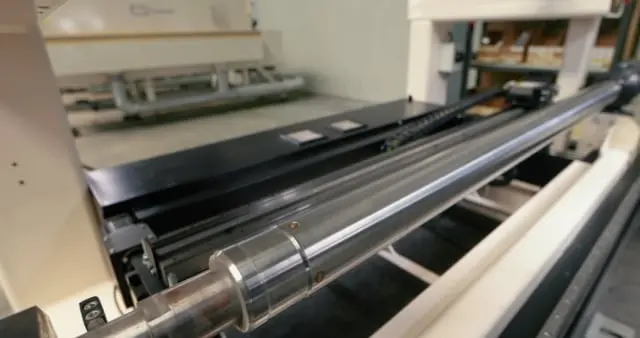

Camera for EasyReg
Using the calibration data by scanning the mandrel and the sleeve, the Easyreg sign is detected

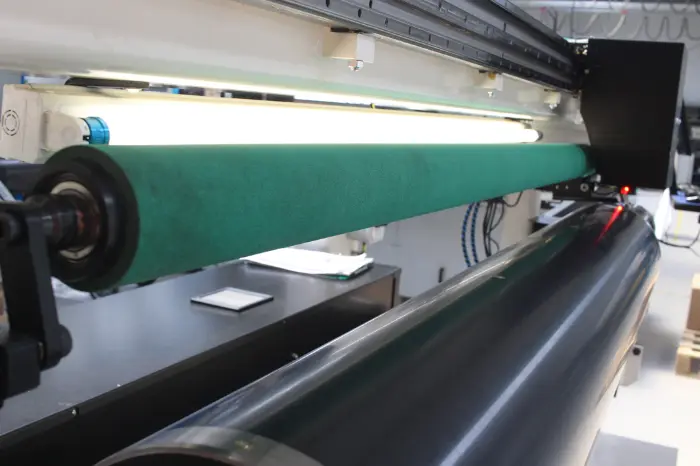

Pressure Roller (Optional)
The pressure roller is used for applying tape after scanning the sleeve. It eliminates any air bubbles.
Options

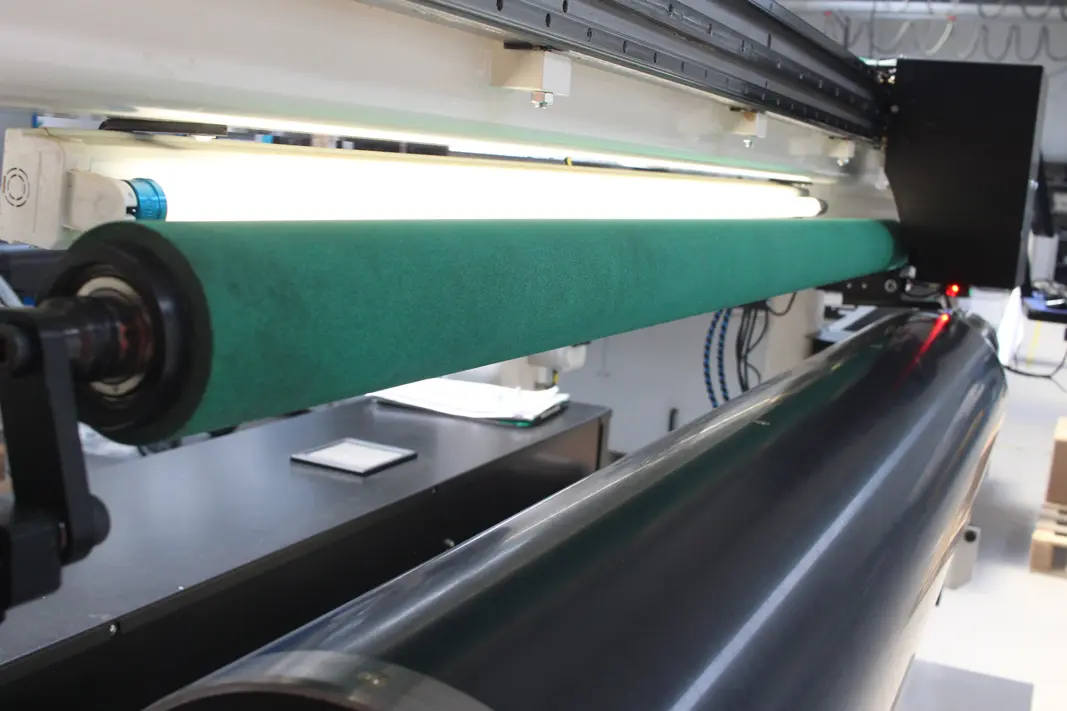

Pressure Roller
The pressure roller eliminates any air bubbles and provides excellent tape application on sleeves.

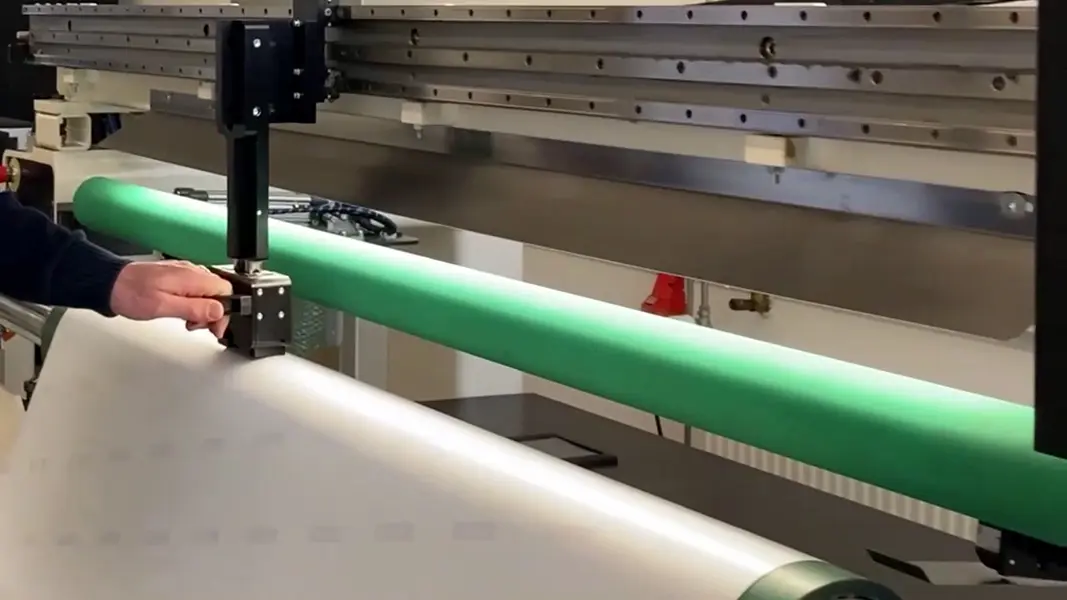

Cutting Knife
The cutting knife has a rotary ceramic blade which cuts the tape seamlessly and without damaging the sleeve. It saves costs from buying new sleeves.

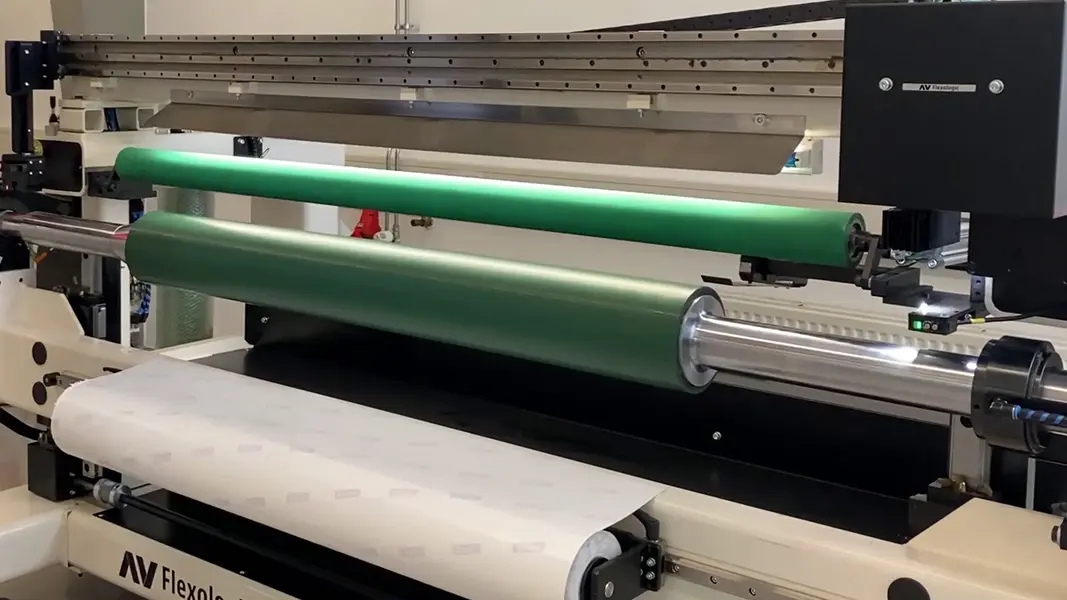

Tape Holder

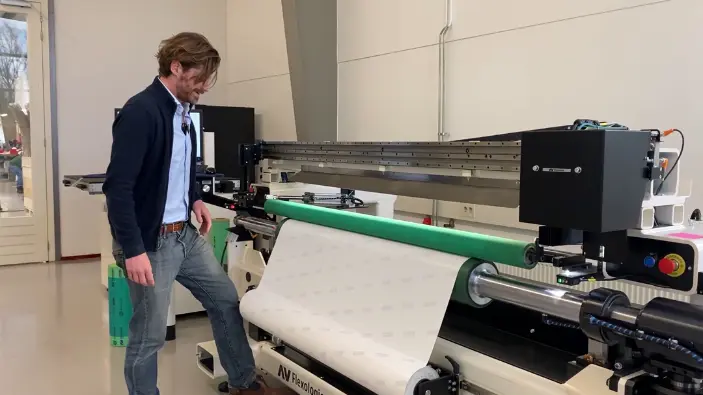

The tape holder assists in the tape application process and makes sure that the tape is in parallel with the sleeve.
