Currently, we offer discounted wide web refurbished machines and equipment. All machines are completely refurbished as new and updated to the latest AV Flexologic standards, equipped with features such as:
- Motorized HD cameras
- Motorized rotation of the cylinder
- 40″ HD Flat screen monitor
- New PC, PLC
- Windows 10, new Industrial Fanless PC, latest software
- New cabling
- New lenses, LED lighting
Currently, there are no available demo or refurbished machines for narrow-web.
Refurbished Machines

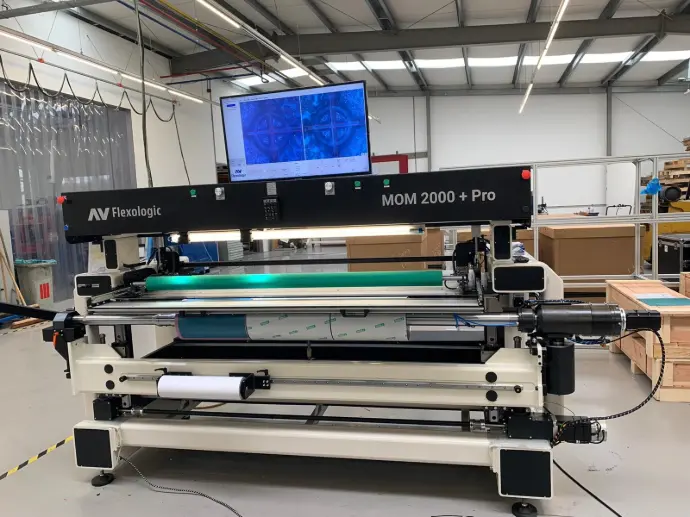

MOM DD+ Pro 2000
The semi-automatic flexo plate mounter, MOM DD+ Pro, is the industry standard for manual positioning of plates. Its cost-saving features and options maximize efficiency and accuracy.
FAMM 1.0 1300/1700
2011 Refurbished as New
The patented FAMM is equipped with a computer that controls all the motorized variables that are necessary for positioning the flexo plates fully automatically in the exact positions. The system works with interactive cameras that can read the digital positions of the markings and a robotic manipulator that controls the positioning of the plate.
- New PC, cameras and software
- Updated with the FAMM 3.0 table and pick & place unit
- Loading/Unloading Sleeve: 30 sec
- Max mounting time/plate: 90 sec
- Precision reading: 0,005mm
- Mounting accuracy: 0,05mm
- Min. plate width: 100 mm/3.94 inch
- Max plate width: 1300-1700 mm / 86.61-67 inch
- 1 year warranty
MOM DD+ Pro 1700
2018 Refurbished as New
The MOM DD Pro is our high-end motorized flexo plate mounter with cost-saving features and options for maximizing accuracy.
- For sleeves
- Direct Drive customized chrome air mandrel
- Max width: 1700 mm / 67 Inch
- Max repeat: 1350 mm / 53 Inch
- 1 year warranty
MOM DD+ Pro 1300
2018 Refurbished as New
The MOM DD Pro is our high-end motorized flexo plate mounter with cost-saving features and options for maximizing accuracy.
- For sleeves
- Direct Drive customized chrome air mandrel
- Max width: 1300 mm / 52 Inch
- Max repeat: 1350 mm / 53 Inch
- Refurbished as new
- 1 year warranty

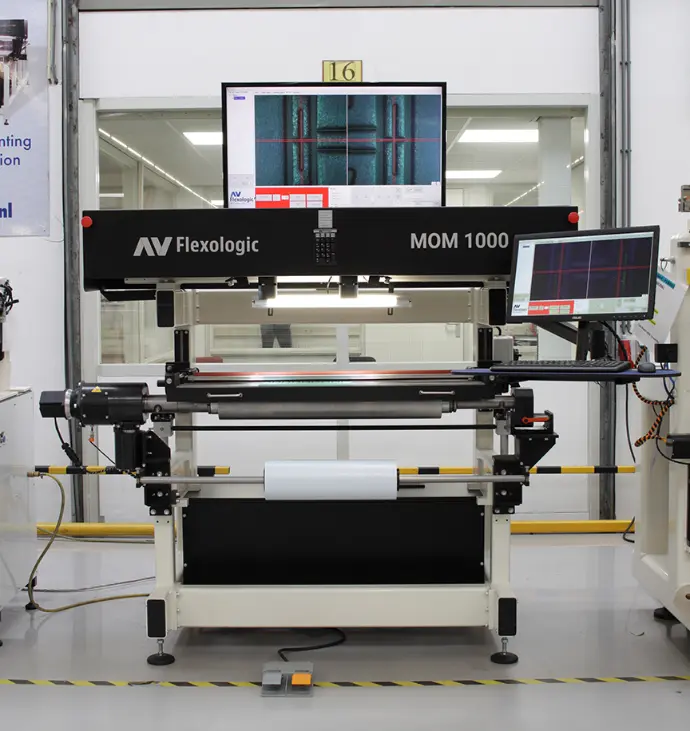

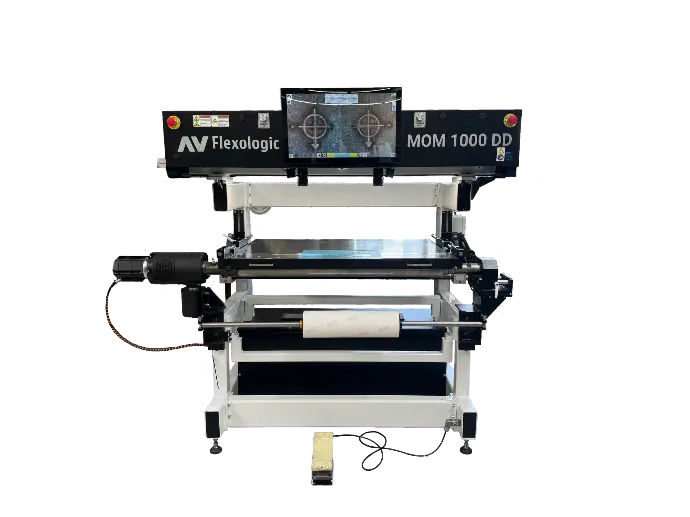

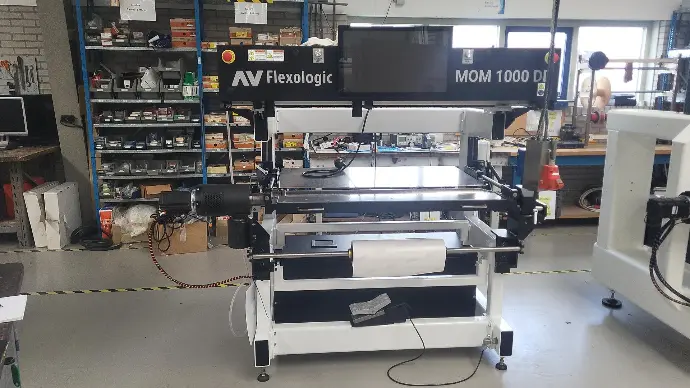

MOM DD 1000
2005 Refurbished as New
The MOM DD is the industry-wide standard in mounting machines for mounting flexographic printing plates onto sleeves with manual positioning of printing plates.
- Fully refurbished
- New monitor, electrical system, and software
- Loading / Unloading Sleeve: 60 sec approx.
- Min plate width: 100 mm / 3.94 inch
- Max plate width:1000 mm / 39.4 inch
- Max Repeat Length: 850 mm / 33.46 inch
- 1 year warranty

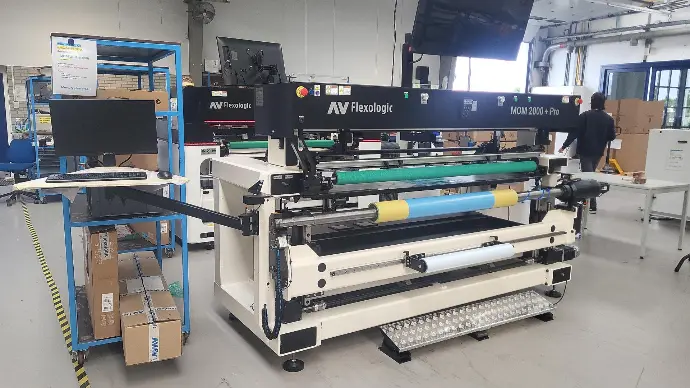

MOM DD+ Pro 2000
Refurbished as New
The MOM DD Pro is our high-end motorized flexo plate mounter with cost-saving features and options for maximizing accuracy.
- For sleeves
- Direct Drive customized chrome air mandrel
- Max width: 2000 mm / 78 Inch
- Max repeat: 1250 mm / 49.2 Inch
- Refurbished as new
- 1 year warranty

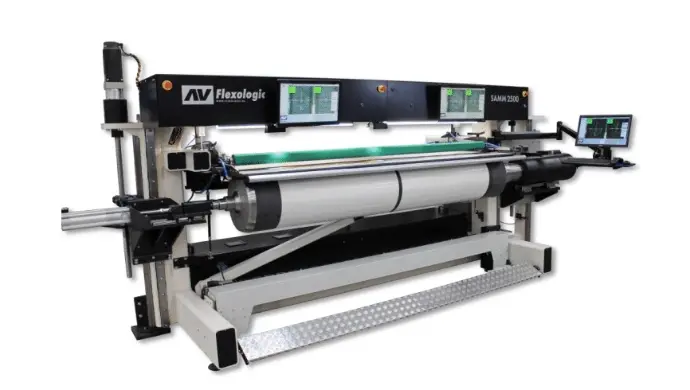

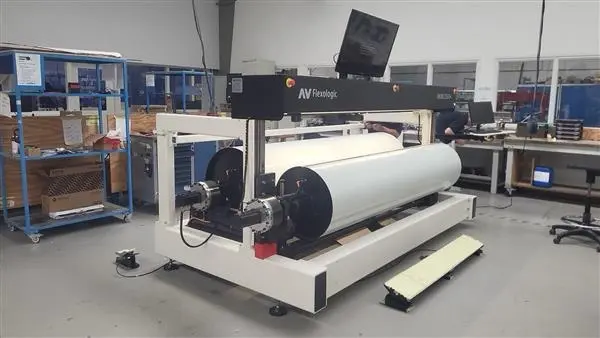

SAMM 2500
Refurbished as New
The patented SAMM is equipped with a computer that controls all the motorized variables that are necessary for positioning the flexo plates fully automatically in the exact positions.
- Mounting Time per Plate 90 sec
- Precision Reading 0,005 mm / 0,00019 inch
- Min. Plate Width 100 mm / 3,94 inch
- Max. Plate Width 2500 mm / 98 inch
- Min. Plate Height 280 mm / 7.08 inch
- Mounting Accuracy 0,05 mm / 0,00197 inch
- Max. repeat: 2032 mm/ 80 inches
- New PC
- Mounting table
- Pressure roller
- 1 year warranty
SAMM 2.0 1300
Refurbished as New
The Automatic SAMM 2.0 is the world’s fastest and most accurate flexo plate mounter with unmatched repeatability and speed. The next generation SAMM is the solution to common trends in the flexo printing industry such as higher quality demands, shorter and more frequent job runs.
- Loading / Unloading Sleeve: 60 sec
- Width: 1300 mm/ 52 inches
- Max repeat: 1350 mm/ 53 inches
- Accuracy of 5μm
- Automatic HD cameras
- Automatic pressure roller
- Quality report
- 1 year warranty
Used Equipment
Cosmoline 900
2019 Refurbished as New
- Plate Washer
- Exposure/dryer
- Centrifuge
- 1 year warranty

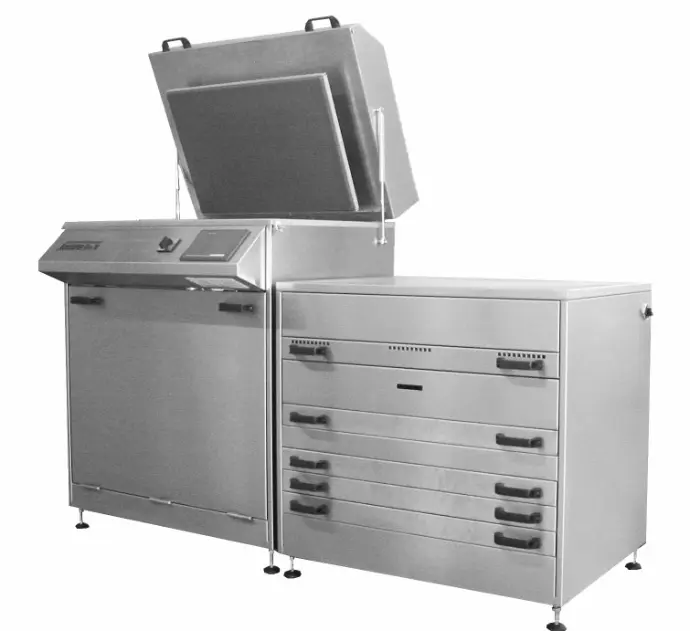

AquaSuper 50x70
Refurbished as New
The Aquasuper is a high volume, full filtration photopolymer machine to manufacture water washable flexo printing plates up to 500x700mm (20” x 28”). The plate to be washed out is fixed in the orbital washout unit on a sticky base plate. The plate is washed out in a mixture of water of 1% dishwasher soap, at a temperature of approximately 40° C.
The machine is equipped with a PLC, which has a digital display for back-exposure, main exposure, washout time, dryer temperature and anti-tacking.
- Back-main exposure and post exposure of the photo-polymeric plate
- Flat washing of the plate
- Drying the plate
- Anti-tacking the plate
- 1 year warranty
AquaSupreme
80x105 / 90x120
- Available in 80×105 (2018)/ 90×120
- Plate washer
- Exposure/ dryer
- Centrifuge (80×105 only)
- 1 year warranty
Refurbished Machines
Flatmount 3000
The Flatmount is a mounting machine for flexo photopolymer printing plates, especially developed for the corrugated post print flexo industry, which are provided with mylars . The sturdy steel frame construction with trespa top and a temperature treated and grinded camera beam with double linear guiding ensures best calibration and excellent results throughout the years. The automatic positioning of both cameras simplifies the mounting job , which improves and accelerates results considerably.
- Min plate width: 100 mm / 3.94 inch
- Max plate width: 3000 mm / 118,1 inch
- Max Repeat Length: 1700 mm / 66,9 inch
Possible options:
- Pressure roller
- Vacuum
- QR with Image Recognition
Used Equipment
Plate Cutter
- Price EUR 1.000
- Folding Table
- Motor Driven System
- Rotary Blade
- 90 and 45 Degrees
- Length 1600mm
