Robotic Tape Applicator
RoboTAPE
The RoboTAPE is a game-changer patented solution for applying tape onto sleeves fully automatically and without any tape waste thanks to the spiral taping. The manual taping is eliminated and any related taping mistakes that cause press downtime.
- Eliminate tape waste thanks to spiral taping
- Eliminate manual tape application
- Reduce operator related press downtime
- Eliminate air bubbles and overlaps
- No more cutting on sleeves
- Eliminate sleeve damage
Discover RoboTAPE

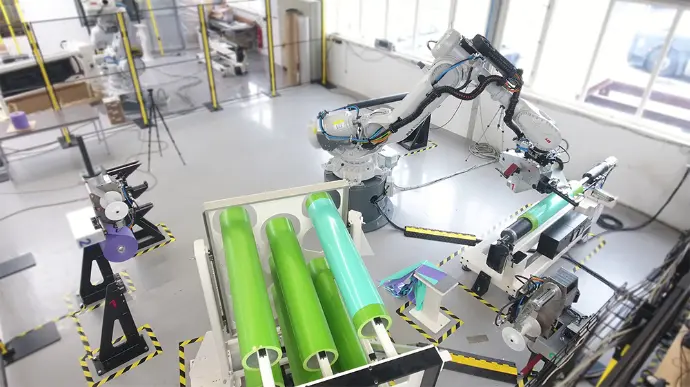

Introduction to the RoboTAPE
An overview of the RoboTAPE, the automated solution for applying mounting tape to sleeves. This video introduces the system's core functions and its role in achieving consistent, high-quality tape application.
Integrated and Specialized Workflow
These videos demonstrate the RoboTAPE's workflow, including its seamless integration with the RoboSLEEVE for a fully automated process. Additionally, see the machine's precision as it applies specialized tape for unique application requirements.
Features

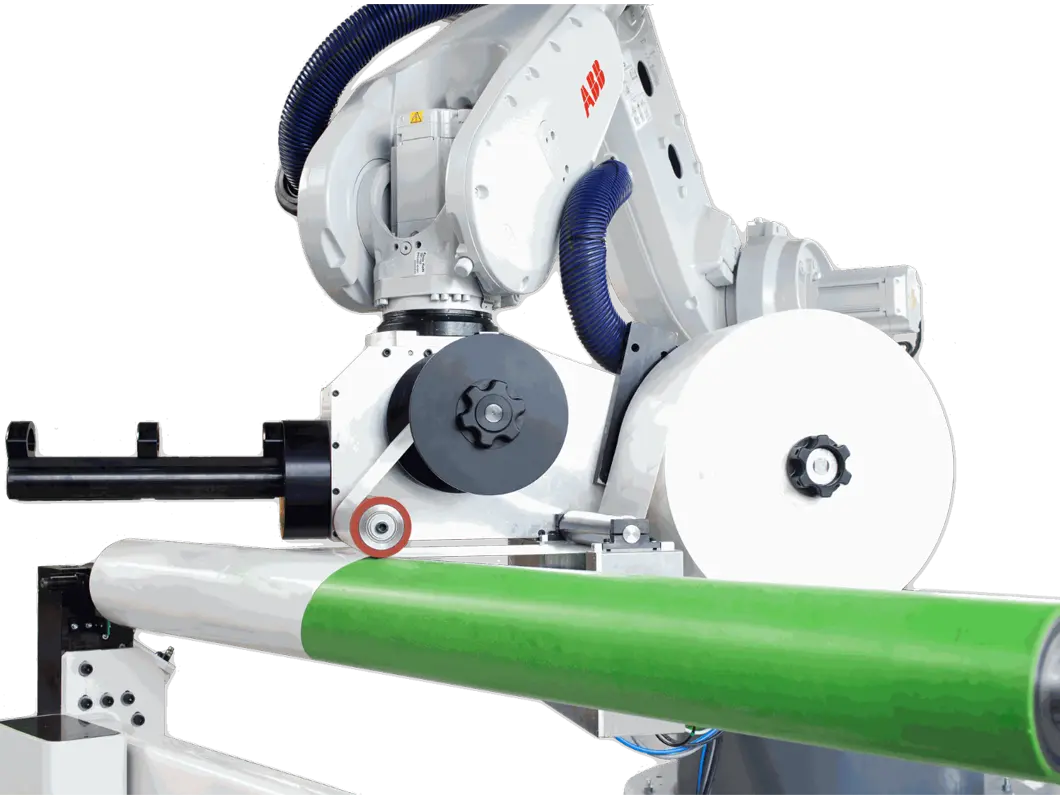

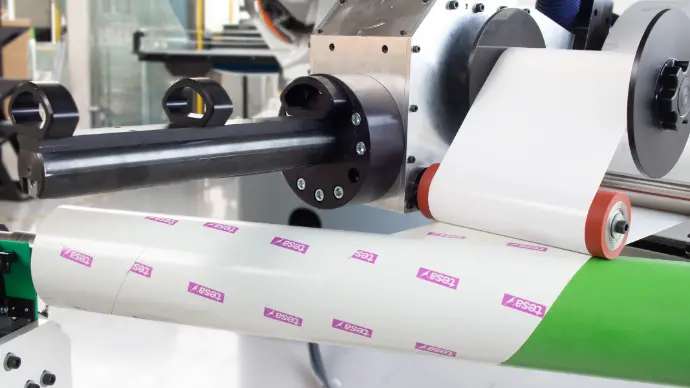

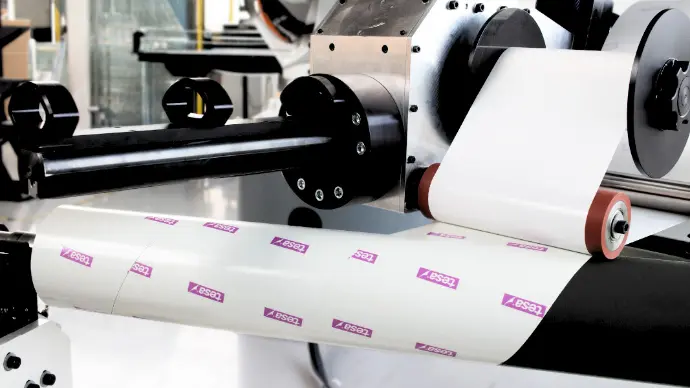

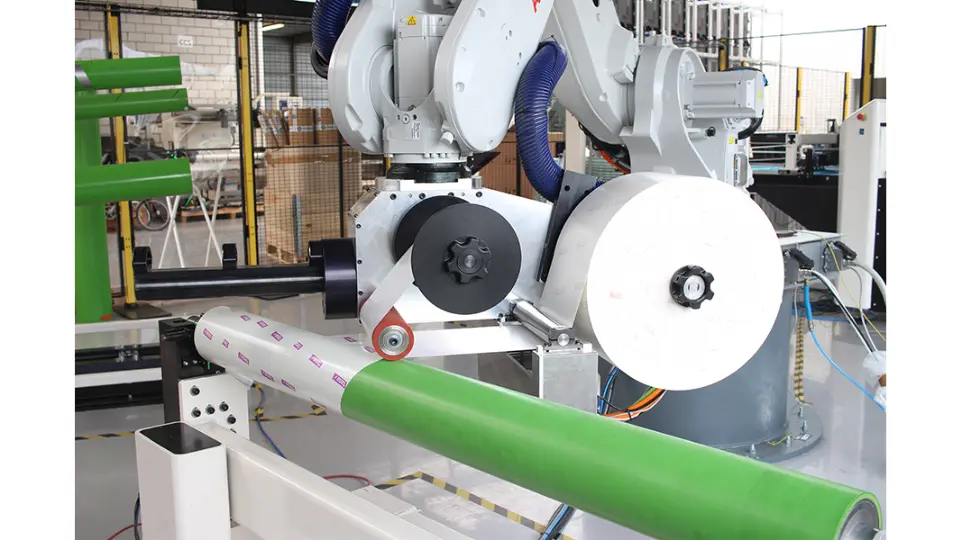

Robotic Tape Application
The RoboTAPE applies the tape fully automatically within 30 seconds. The spiral taping eliminates tape waste
No Air Inclusions
The robotic taping eliminates the air bubbles and provides accurate and consistent taping application.

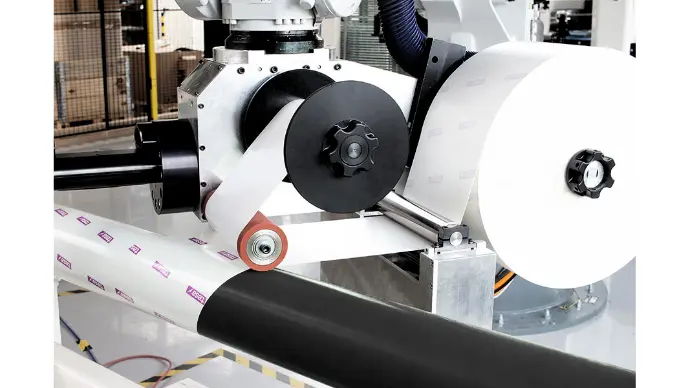

Tape Roller
The RoboTAPE has a tape roll of 250m of length for applying the tape. The width of the tape is 230mm.

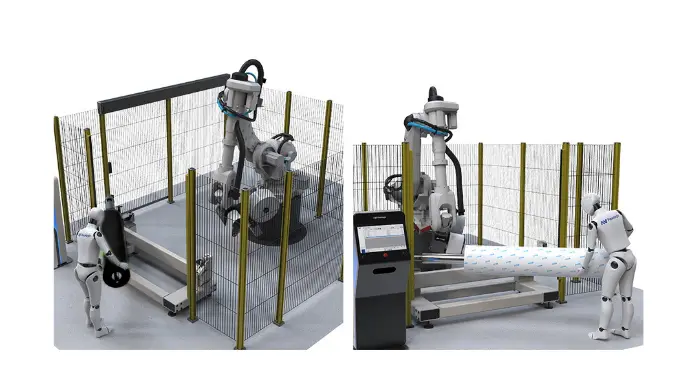

Taping Station
The operator manually loads the sleeve/adapter on the mandrel of the taping station. When the tape application is completed by the robot, he can remove the taped sleeve.

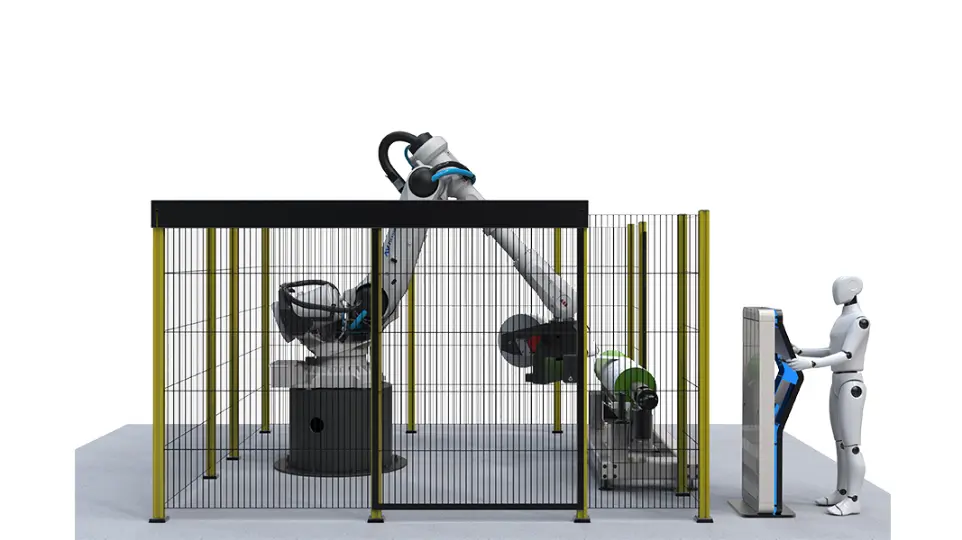

Safety Fence
The robot is surrounded by a safety fence to protect the operator during the taping process.

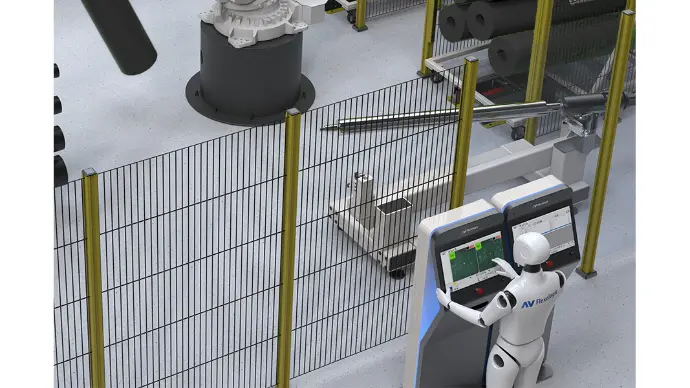

HMI Console
The HMI Console is used to set up jobs and start the loading and mounting process. XML files can be loaded into the system for a quick start-up.
Options
RoboSLEEVE Function

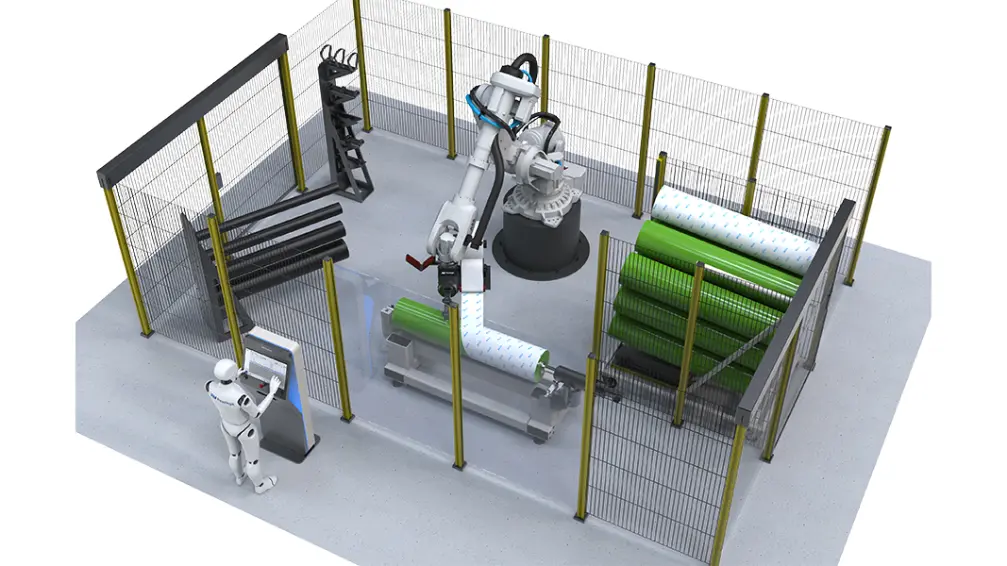

The RoboTAPE can be advanced with the RoboSLEEVE function which allows the robot not only to apply the tape, but also to handle safely the sleeves and both load and unload them. The combination of the RoboTAPE and the RoboSLEEVE allows a fully automatic taping process without any operator interaction.

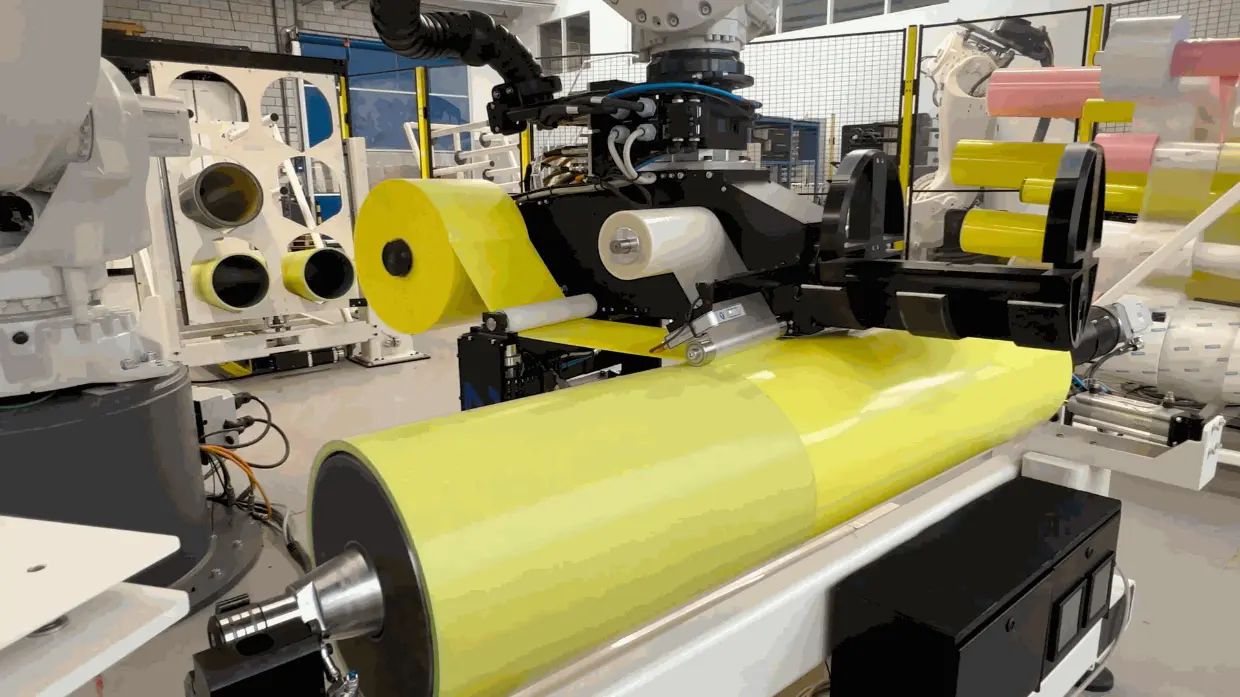

Additional Taping Tool
Additional taping tools can be added in the cell in a dedicated tool station area where the Robot can automatically change its tool and load one with a different density tape.

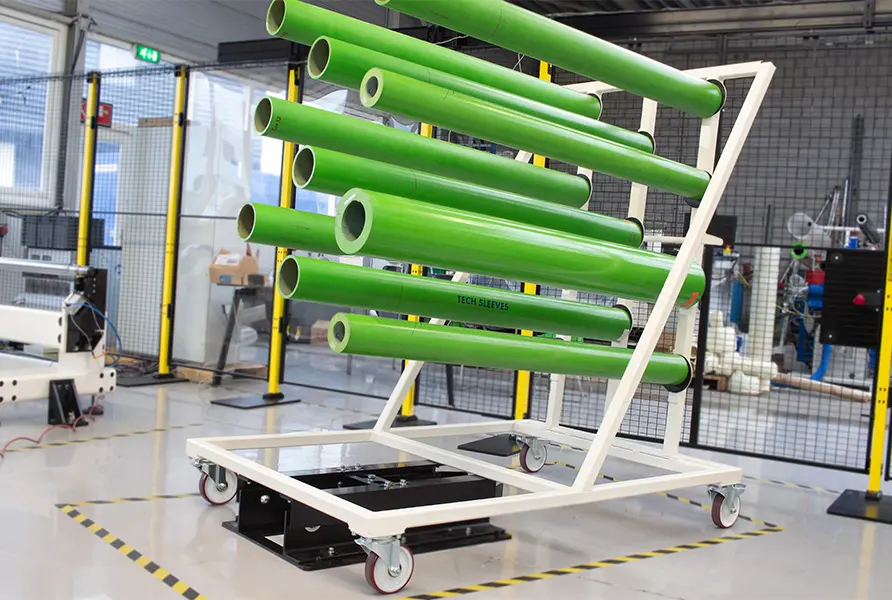

Tech Cart
One or more Tech Carts can be supplied with the RoboTAPE to help transfer the sleeves. The customized Tech Cart provides safe and easy sleeve transfer.
RoboTAPE Business Case
A printing and packaging company with a capacity of 1000 sleeves per week has enormous savings from the elimination of press downtime due to taping mistakes, the related tape waste and labor savings from handling and taping sleeves manually.
