The EXACT laser cutting and engraving system is used for high-precision flexo plate processing. During laser cutting and engraving, material is thermally processed, generating fumes that must be properly extracted and filtered. To address this, the EXACT system can be equipped with the BOFA AD 1500 iQ as an external fume extraction unit.
This allows fumes generated during flexo plate laser cutting to be extracted, filtered, and recirculated back into the workshop environment.
The Challenge: Fumes in Flexo Plate Laser Processing
Laser cutting of flexo plates involves melting or vaporizing material. This process generates fumes and airborne particles that need to be controlled.
- Exposure to process fumes at the machine
- Residue buildup on components and surrounding equipment
- Contamination of the working environment
- Challenges in maintaining consistent air quality

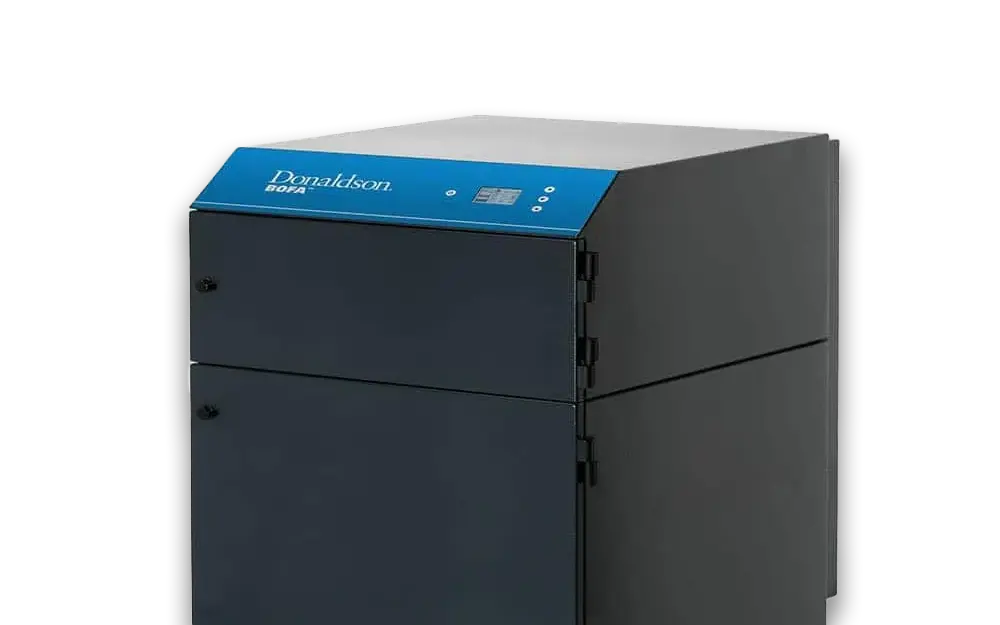

The Solution: BOFA AD 1500 iQ
The BOFA AD 1500 iQ provides visibility and control over the extraction process.
Real-Time Airflow Monitoring
Continuous airflow measurement allows operators to verify that extraction is functioning as expected.
Independent Filter Condition Monitoring
Filter condition monitoring shows when filters need to be replaced, helping operators plan maintenance.
High Contrast Display
A clear display shows system status and performance data during operation.
Remote Diagnostics via USB
System data can be accessed for diagnostics and troubleshooting when required.
Long-Life, Low-Cost Replacement Filters
Filters are designed for extended use and straightforward replacement.

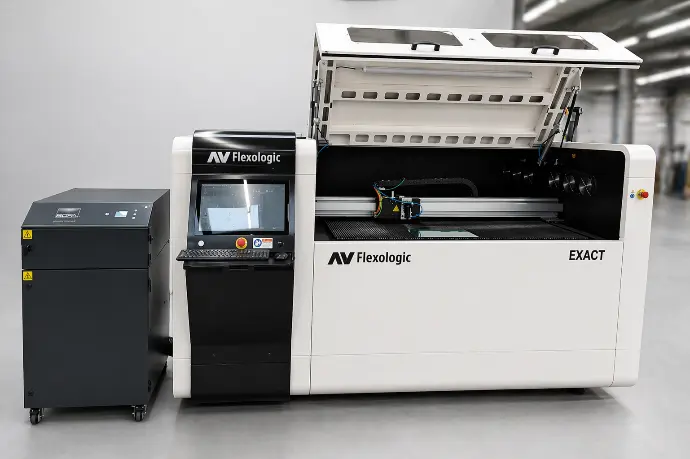

Using an external fume extraction unit with the EXACT system means fumes are removed at the point of generation, while operators can monitor extraction performance in real time. Filter status and maintenance needs are visible, making it easier to keep the system running consistently.
Why This Matters for Flexo Operations
In flexographic printing environments, consistency and uptime are critical. Using a dedicated external extraction unit simplifies how fumes are managed during laser processing and keeps the setup consistent.
This supports:
- Stable operating conditions at the machine
- Clear visibility of extraction performance
- Simplified system setup and maintenance
Request More Information
To understand how the EXACT laser cutting and engraving system with integrated BOFA AD 1500 iQ can be applied in your operation, contact the AV Flexologic team.
Final Takeaway
Laser cutting improves precision, consistency, and throughput in flexo plate production, but it also introduces fumes that need to be managed. By integrating the BOFA AD 1500 iQ, the EXACT system extracts and filters these fumes as part of the process. This reduces exposure at the machine, keeps the working area cleaner, and maintains stable operation without adding separate equipment.
